Description
Official Raspberry Pi SSD Kit, Includes 256GB / 512GB High-speed Solid State Drive And Raspberry Pi M.2 HAT+, Complies With PCIe Gen 3 Standard, Suitable For Raspberry Pi 5

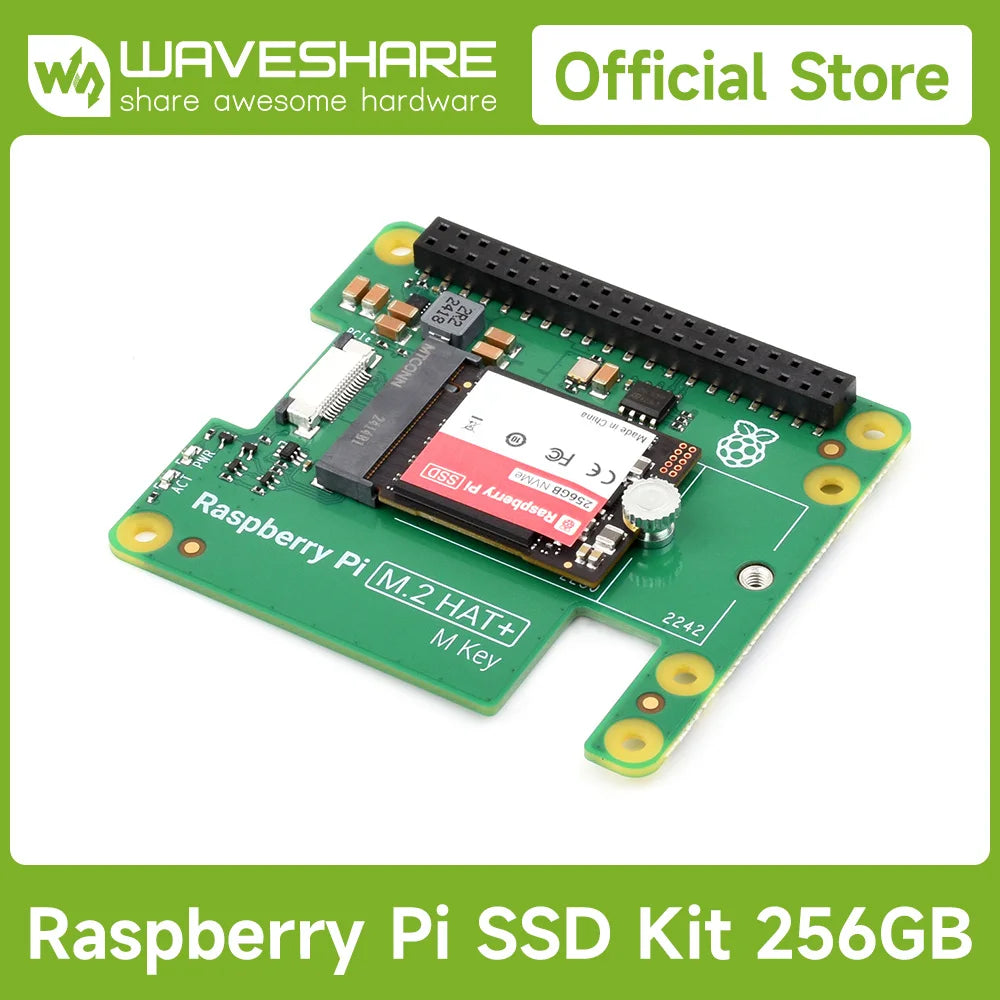

Raspberry Pi SSD Kit
Designed By Raspberry Pi
Version Options
Raspberry Pi SSD Kit 256GB
256GB capacity
Raspberry Pi SSD Kit 512GB
512GB capacity
Product features
The Raspberry Pi SSD Kit bundles a Raspberry Pi M.2 HAT+ with a Raspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD. The Raspberry Pi SSD Kit is available with 256GB and 512GB capacity, and includes a 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.
Key features include:
-
Conforms to the Raspberry Pi HAT+ specification
-
Contains Raspberry Pi SSD (256GB NVMe or 512GB NVMe)
-
256GB NVMe
-
512GB NVMe
-
Includes 16mm stacking header, spacers, and screws for fitting to Raspberry Pi 5
-
Operating temperature 0°C ~ 50°C (ambient)
Specifications
|
Model
|
Raspberry Pi SSD Kit 256GB
|
Raspberry Pi SSD Kit 512GB
|
|
capacity
|
256GB
|
512GB
|
|
speed
|
40k IOPS (4kB random reads)
70k IOPS (4kB random writes)
|
50k IOPS (4kB random reads)
90k IOPS (4kB random writes)
|
|
Features
|
Complies with PCIe Gen 3 standard
NVMe 1.4 register interface and command set
Conforms to the Raspberry Pi HAT+ specification
|
|

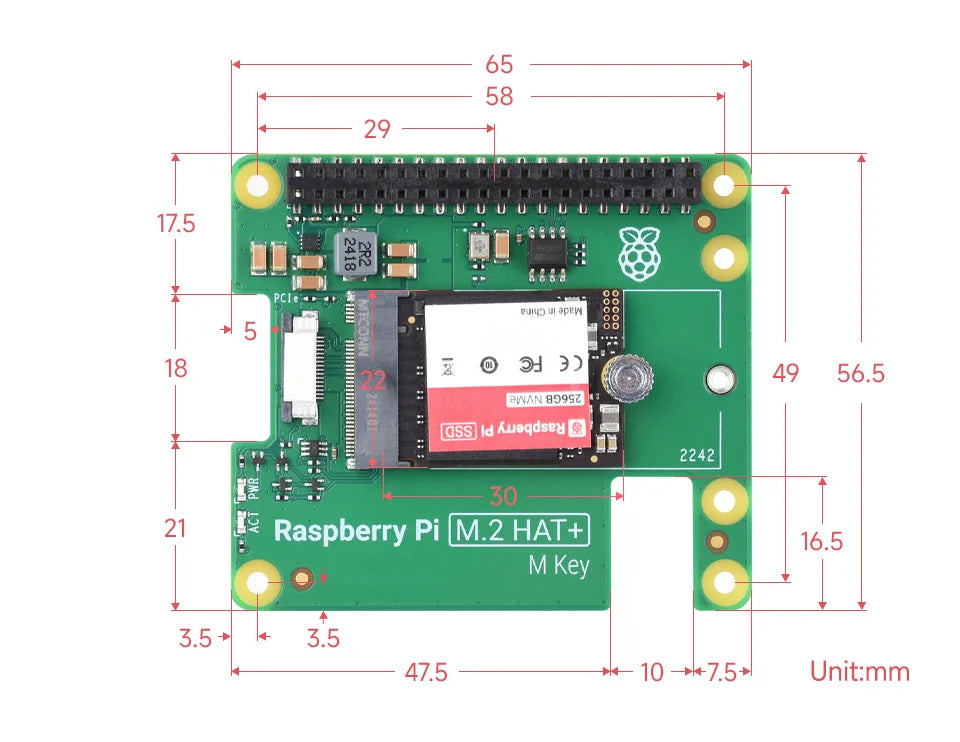

Form factor
|
M.2 2230
|
|
Operating temperature
|
0°C ~ 50°C
|

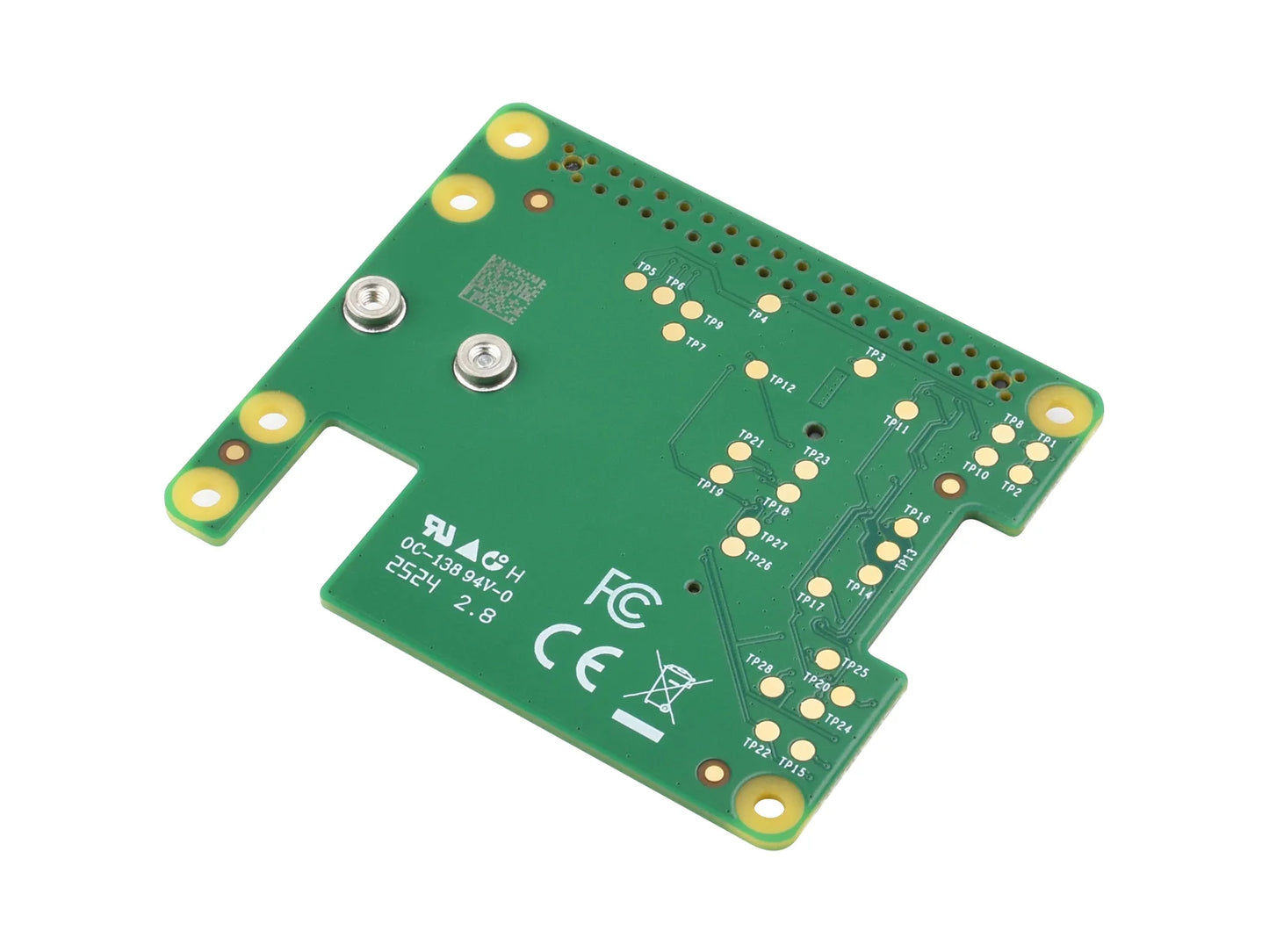

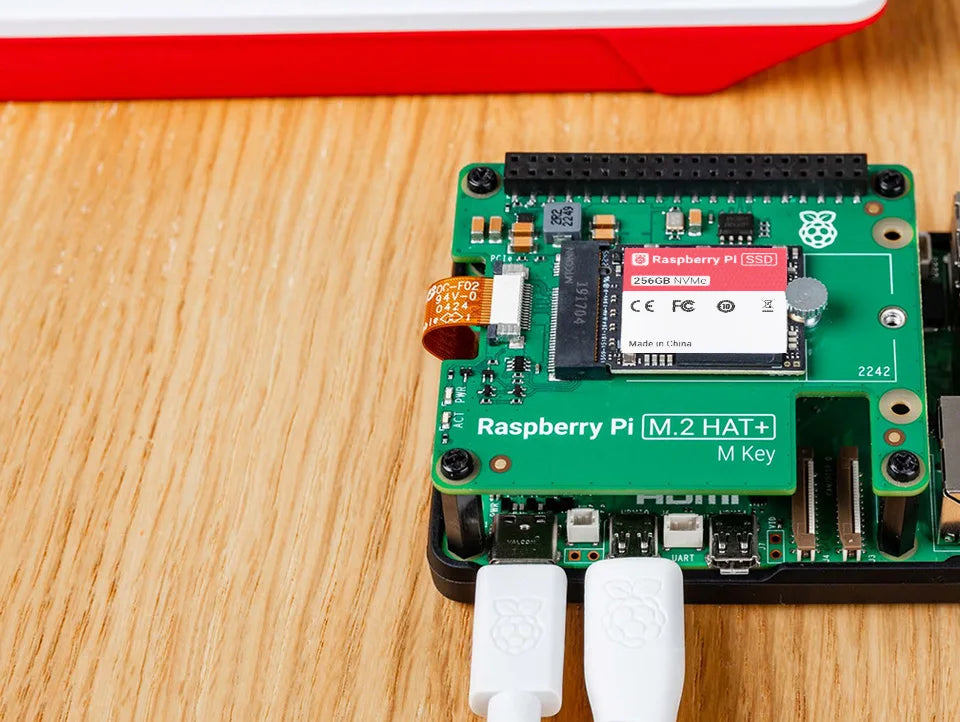

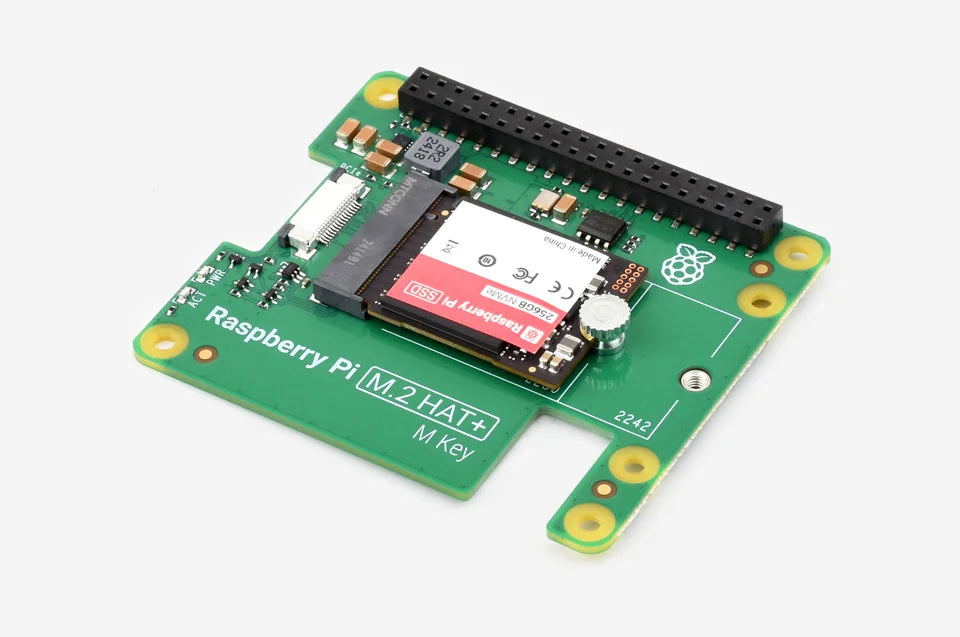

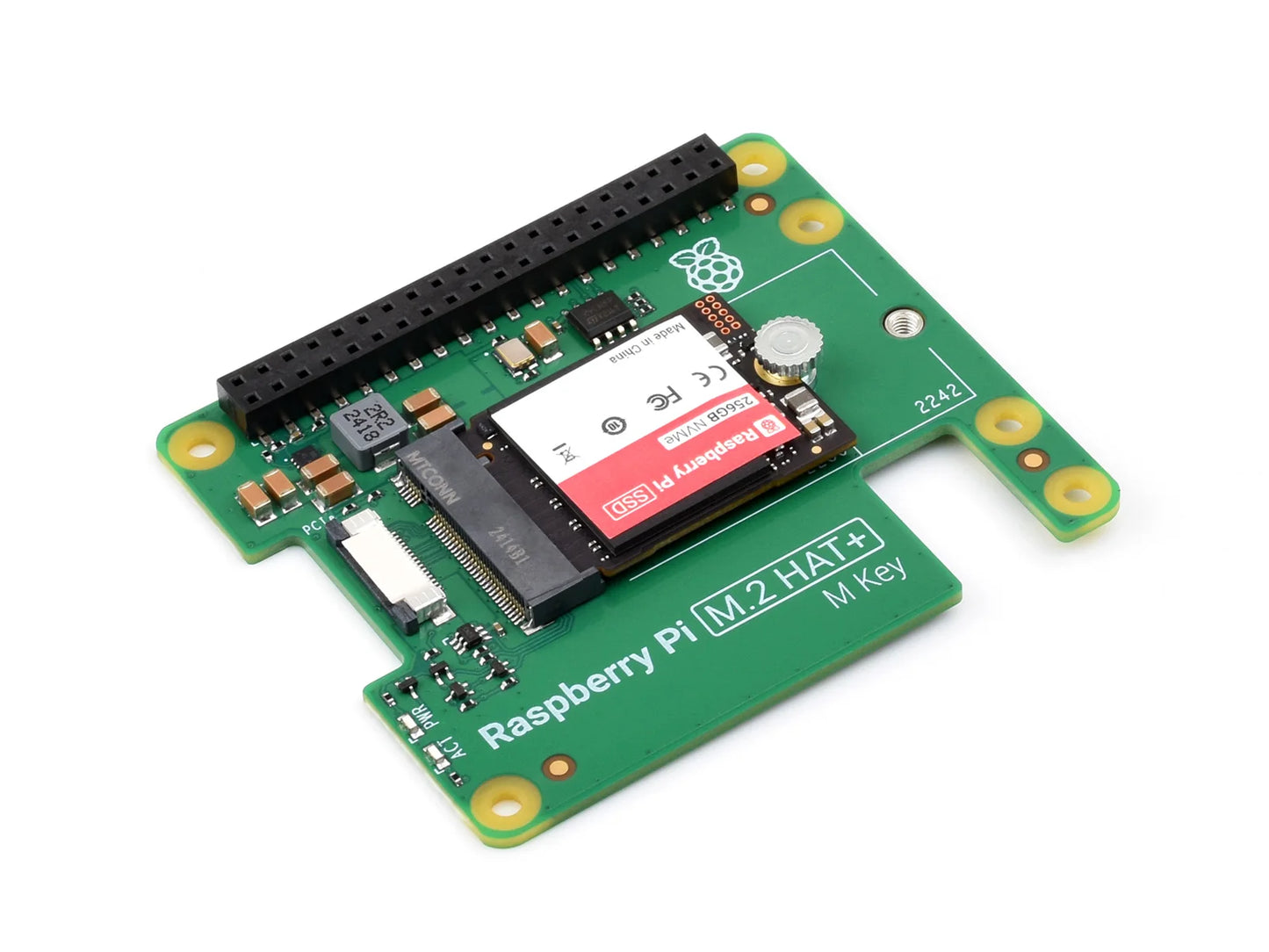

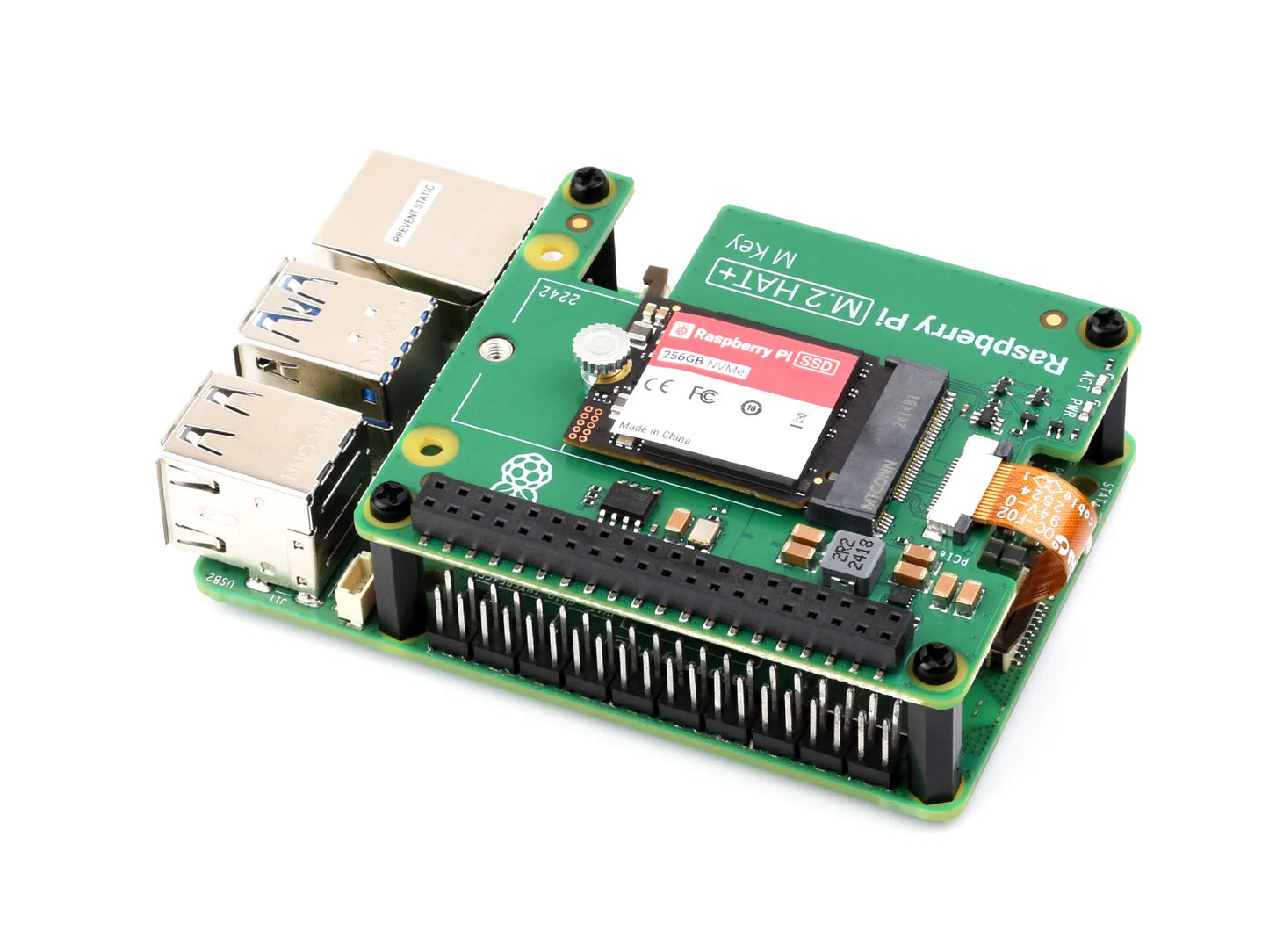

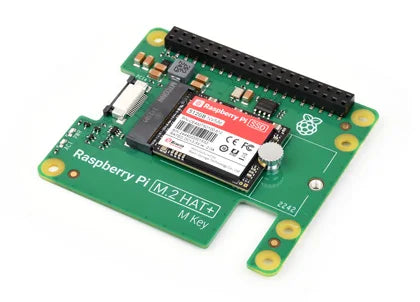

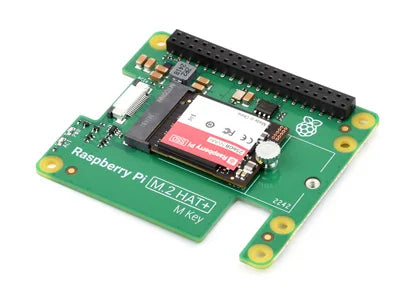

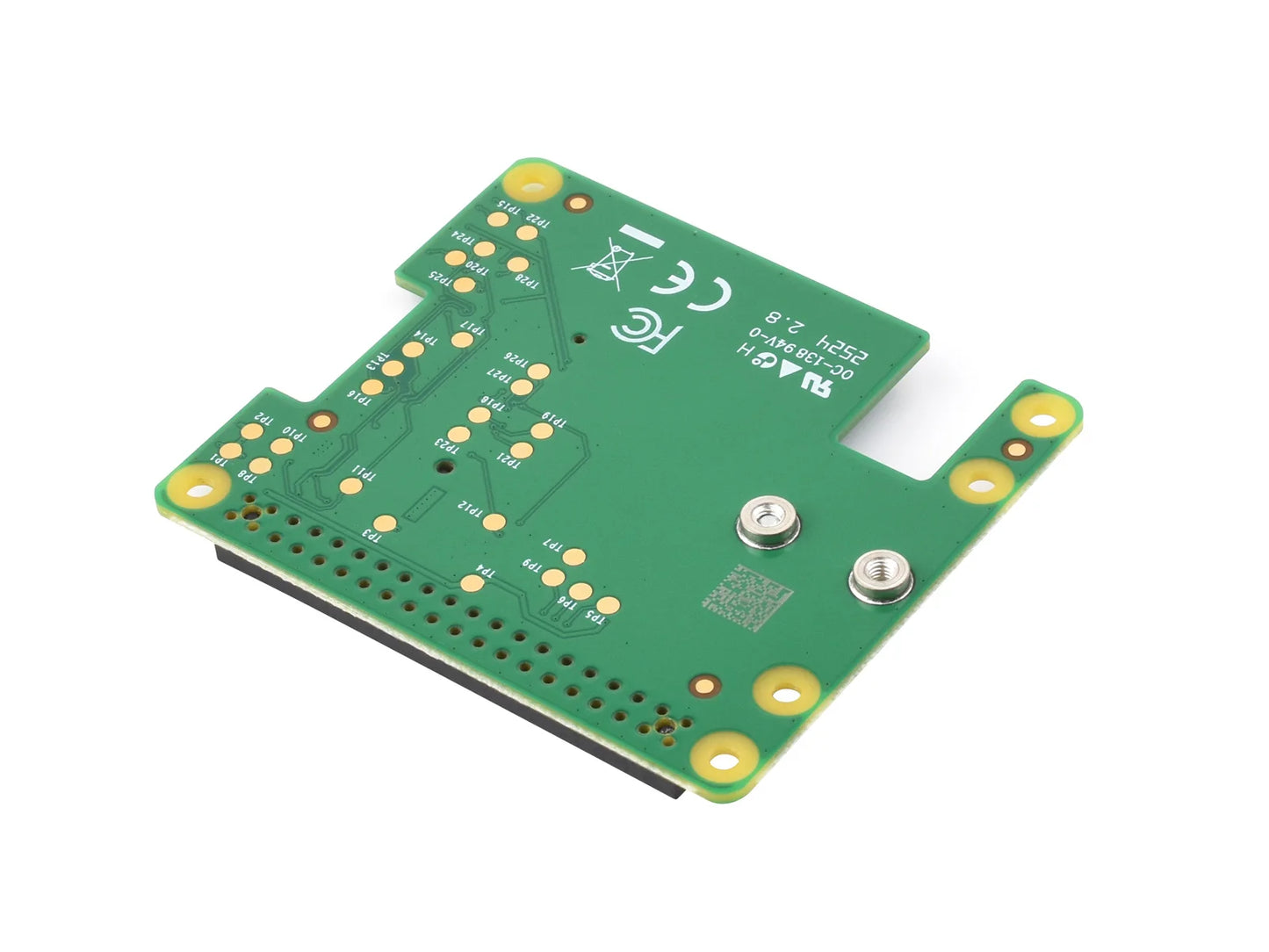

Product show
* for reference only, please refer to the Package Content for detailed part list
Resources & Services
Wiki: www.waveshare.com/wiki/Raspberry_Pi_SSD_Kit

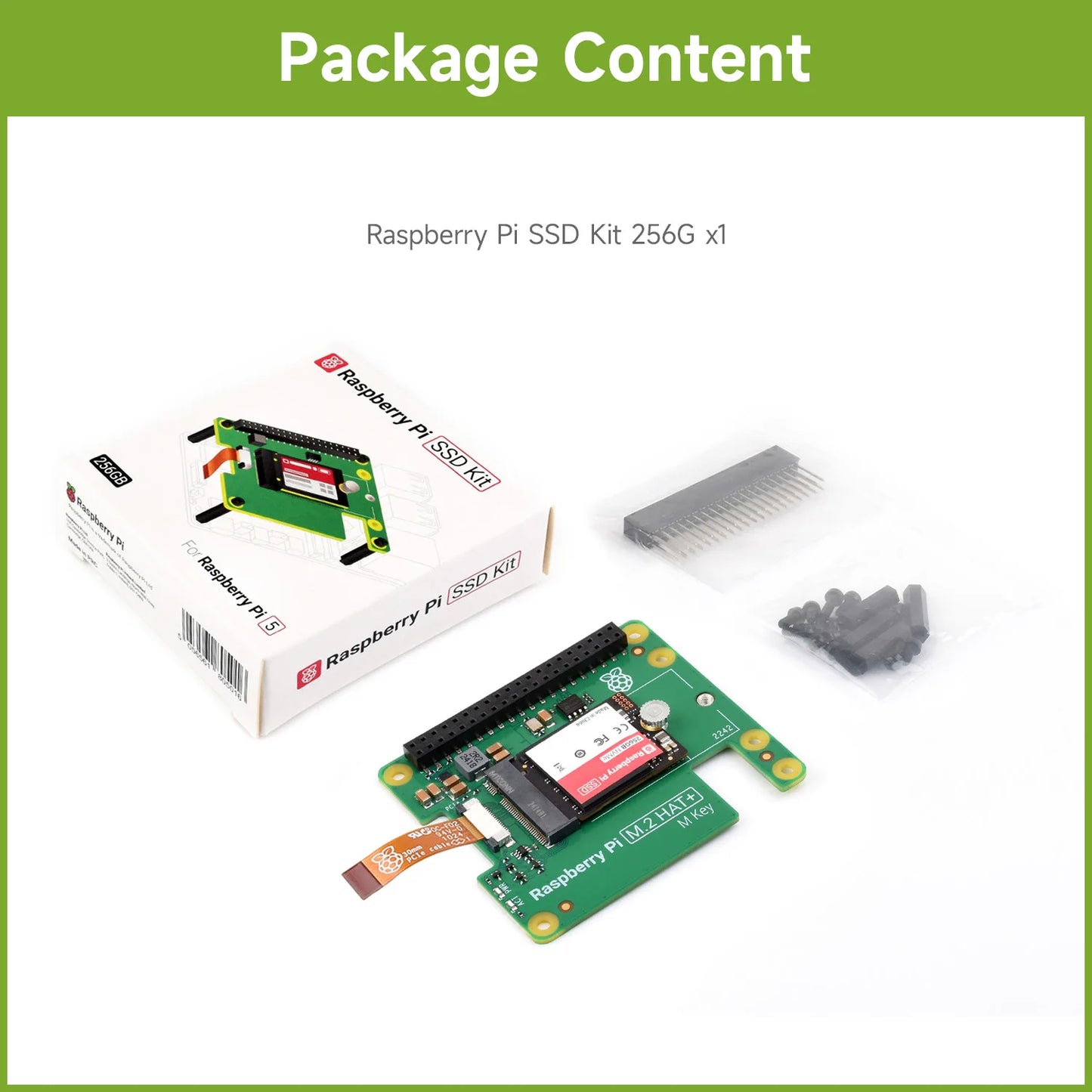

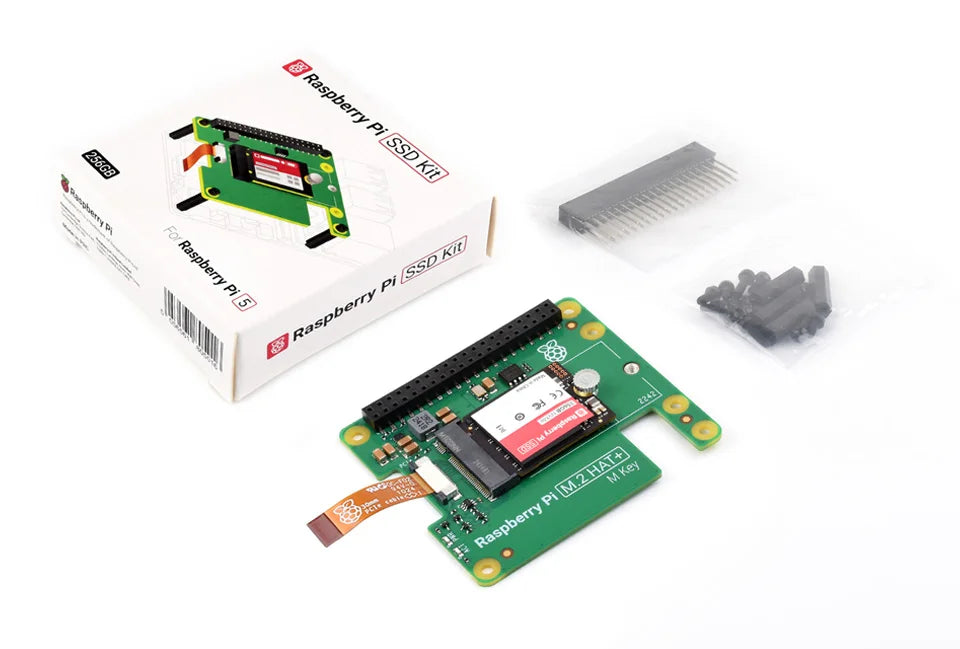

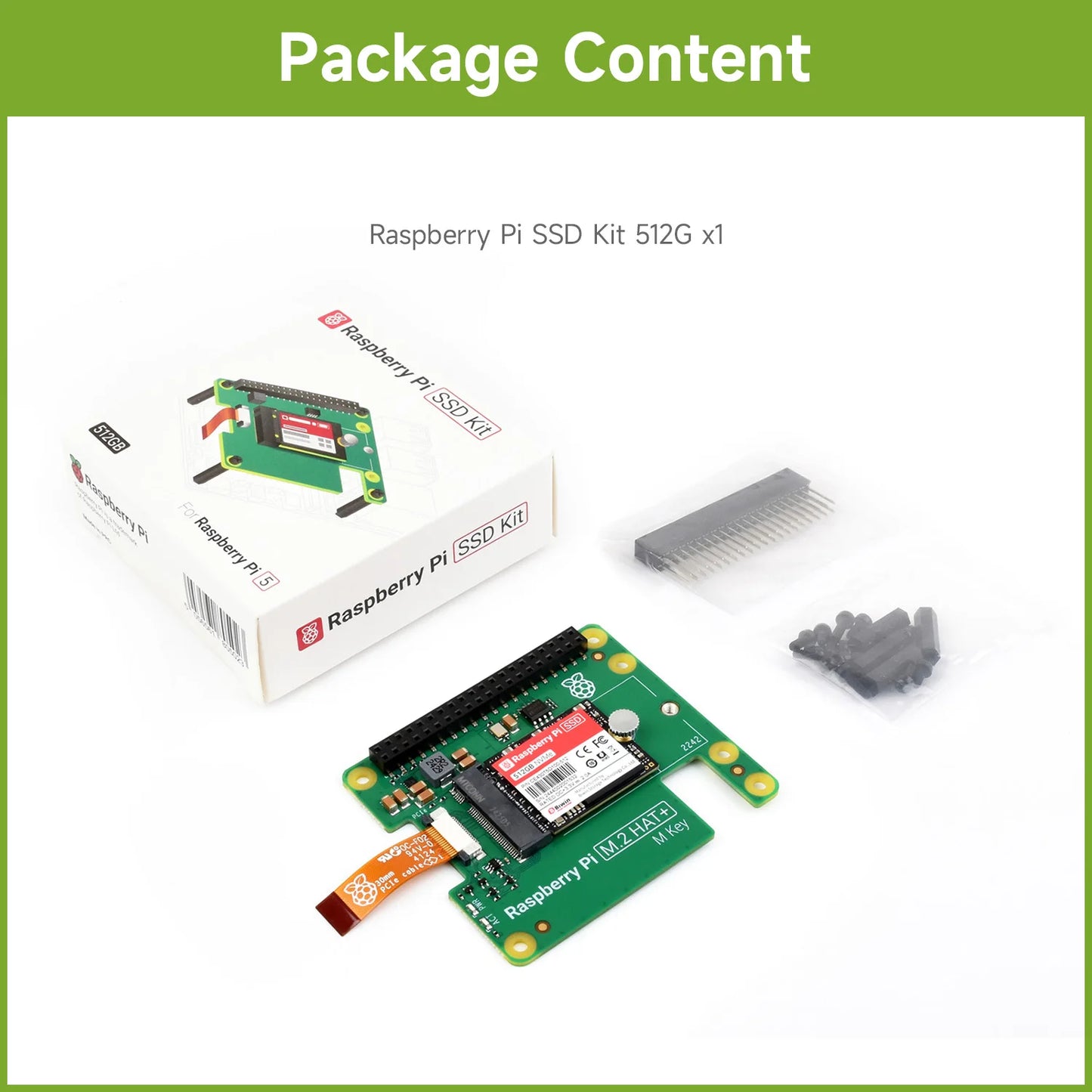

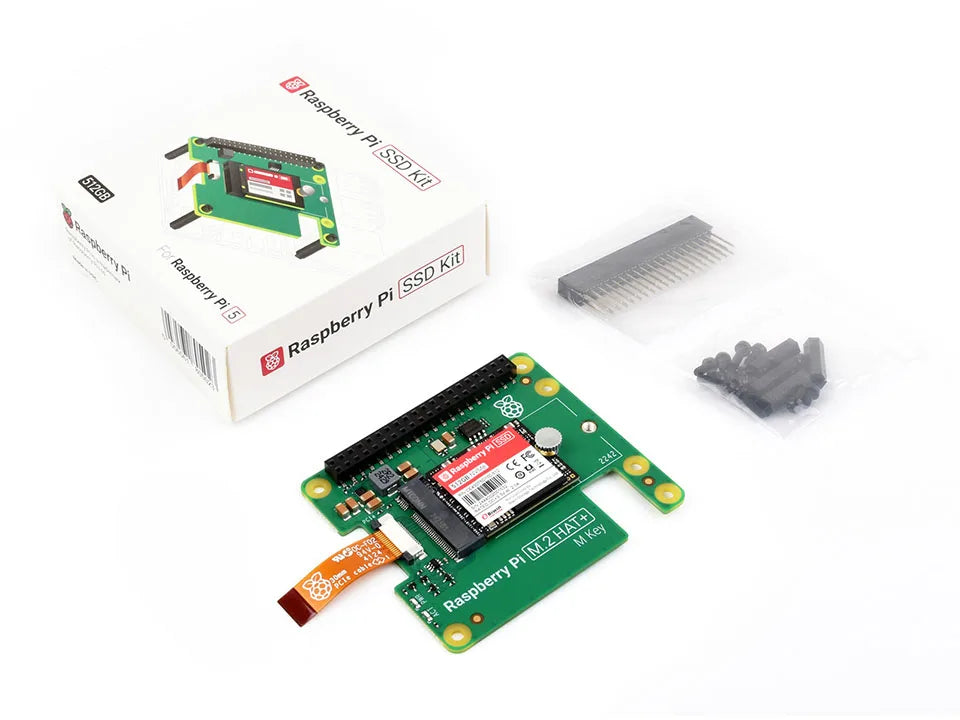

Package Content
Raspberry Pi SSD Kit 256GB
Raspberry Pi SSD Kit 256GB x1
Raspberry Pi SSD Kit 512GB
Raspberry Pi SSD Kit 512GB x1
Weight: 0.035 kg
